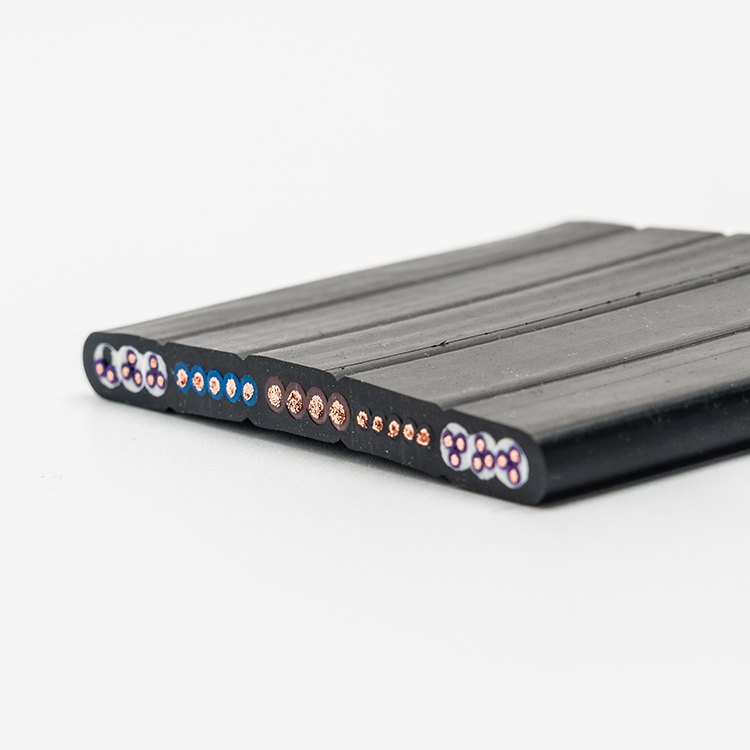

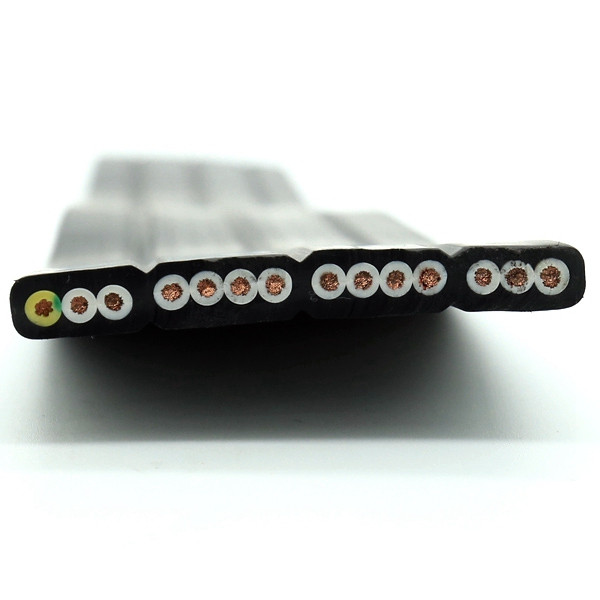

Elevator flexible control cable with power cable

Product Description

Conductor	Fine strands of bare copper wire acco.to VDE0295Class5
Insulation	Mixed PVC
Color	As your requirements
Sheath material	Pvc,cold and fame resistance
Bearing	Steel rope
Outer sheath	Flexible PVC, cold resistance,fame resistance
Clour	Grey

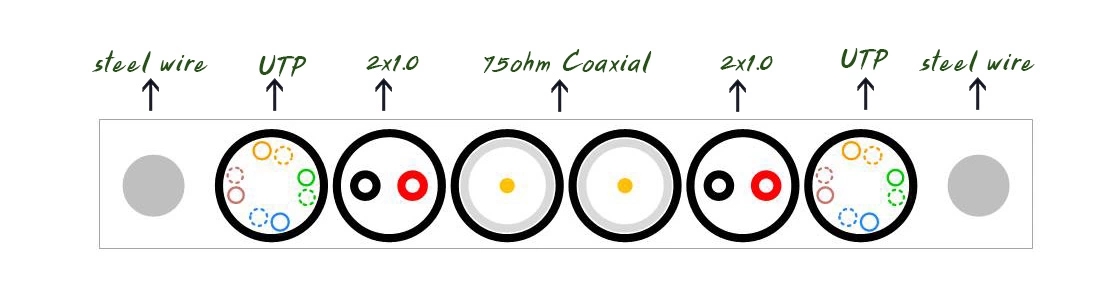

Three kinds of shielding	Aluminum foil, bare cooper
Rated Voltage	450/750V, test voltage:2500V

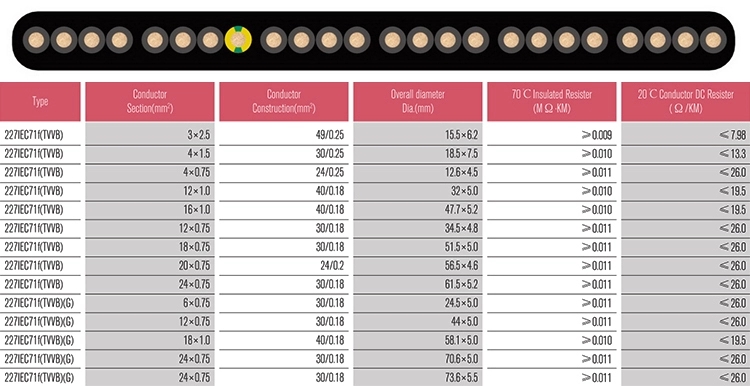

Product Paramenters

Type	Conductor Section(mm2)	Conductor Construction(mm2)	Overall diameter Dia.(mm)	70℃ Insulated Resister (M Ω·KM)	20℃ Conductor DC Resister (Ω/KM)
TVVB	20×0.75	30/0.18	29.9×9.0	≥0.011	≤26.0
TVVB	20×0.75	30/0.18	30.5×9.1	≥0.011	≤26.0
TVVBG	2×1.0+TV(SYV75-4)	7/0.24+50/0.16	15.8×7.6	≥0.010	≤19.5
TVVB	20×0.75+(2×2)×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75+(2×2)×0.75	30/0.18	62×10.0	≥0.011	≤26.0
TVVB	48×0.75+(2×2)×0.75	30/0.18	68.5×10.0	≥0.011	≤26.0
TVVBG	30×0.75	30/0.18	53×8.6	≥0.011	≤26.0
TVVBG	36×0.75	30/0.18	54.0×9.5	≥0.011	≤26.0
TVVBG	40×0.75	30/0.18	58×8.2	≥0.011	≤26.0
TVVBG	42×0.75	30/0.18	66.6×9.7	≥0.011	≤26.0
TVVBG	48×0.75	30/0.18	67.2×9.5	≥0.011	≤26.0
TVVBG	60×0.75	30/0.18	80.0×9.5	≥0.011	≤26.0
TVVB	30×0.75	30/0.18	44.2×9.1	≥0.011	≤26.0
TVVB	36×0.75	30/0.18	42.5×9.0	≥0.011	≤26.0
TVVB	40×0.75	30/0.18	5.25×9.0	≥0.011	≤26.0
TVVB	42×0.75	30/0.18	54.1×9.7	≥0.011	≤26.0
TVVB	48×0.75	30/0.18	58.0×9.6	≥0.011	≤26.0

Hot Products Elevator Guide RailElevator Door OperatorElevator Speed Governor Elevator CabinElevator ControllerElevator Traction Machine Company Profile Exhibition Product Packaging FAQ 1. Price Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators. 2. Payment term Re: T/T or L/C at sight. 3. Installation&Maintaining Re: We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary. 4. Shipping&price term Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

Contact us if you need more details on Elevator Control Cable. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Elevator Cable With Power Cable、Flexible Control Cables. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Elevator Parts > Electric Components
