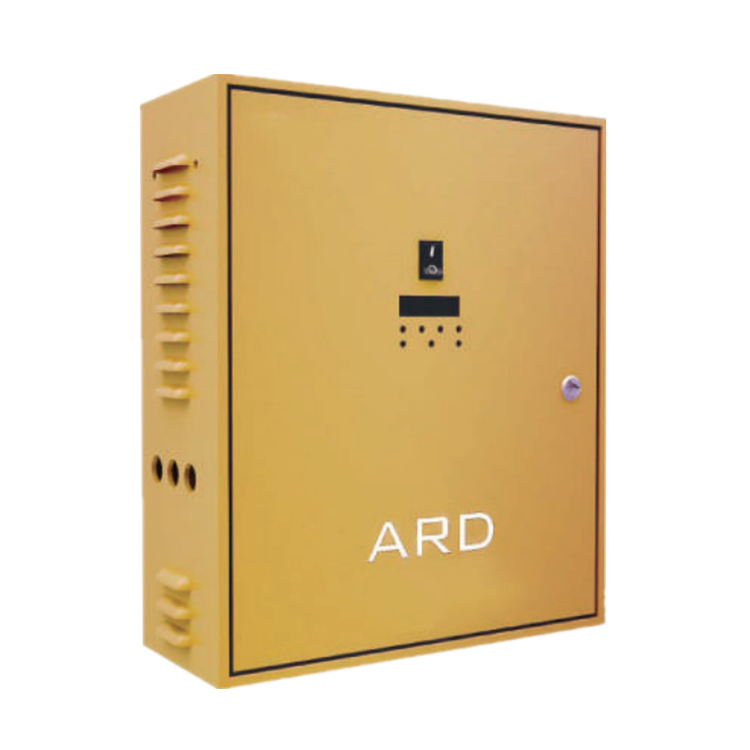

Elevator safety ard automatic switching rescue device

Product Description

Parameter	NV65XM-ARD-10E	NV65XM-ARD-15E	NV65XM-ARD-18.5E
Rated charging voltage	55V	55V	55V
Rated charging current	0.3A	0.3A	4A
Rated output voltage	380Vac sine wave	380Vac sine wave	380Vac sine wave
Rated output frequency	50Hz (60Hz)	50Hz (60Hz)	50Hz (60Hz)
Rated output current	1.32A	2.63A	3.68A
Rated Elevator direction	The direction of lightload	The direction of lightload	The direction of lightload
Inverter power	＜=10KW	＜=15KW	＜=22KW
Storage battery	12V/74H×4	12V/12AH×4	12V/24AH×4
Size(without bracket)	450×630×165	505×705×180	780×605×195
Weight(without battery)	30KG	38KG	48KG
Weight(with battery)	38KG	47KG	80KG

Parameter	NV65XM-3ARD-15E	NV65XM-3ARD-22E	NV65XM-3ARD-37E	NV65XM-3ARD-55E
Rated charging voltage	55V	82V	82V	82V
Rated charging current	1.4A	1.4A	2.4A	2.4A
Rated output voltage	380Vac sine wave	380Vac sine wave	380Vac sine wave	380Vac sine wave
Rated output frequency	50Hz (60Hz)	50Hz (60Hz)	50Hz (60Hz)	50Hz (60Hz)
Rated output current	3A	5.5A	8.2A	11A
Rated elevator direction	The direction of lightload	The direction of lightload	The direction of lightload	The direction of lightload
Inverter power	＜=15KW	＜=22KW	＜=37KW	＜=55KW
Storage battery	12V/74H×4	12V/12AH×6	12V/24AH×6	12V/24AH×6
Size(without bracket)	530×600×190	600×715×220	600×715×220	600×715×220

Elevator Accessories Related Products Shaft ComponentsElevator CabinDoor System Traction SystemSafety ComponentsElectric Components ·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc. Company Profile Exhibition Product Packaging FAQ 1. Price Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators. 2. Payment term Re: T/T or L/C at sight. 3. Installation&Maintaining Re: We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary. 4. Shipping&price term Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

Contact us if you need more details on Elevator Ard Automatic Rescue Device. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Elevator Safety Devices、Automatic Switching Device. If these products fail to match your need, please contact us and we would like to provide relevant information.
