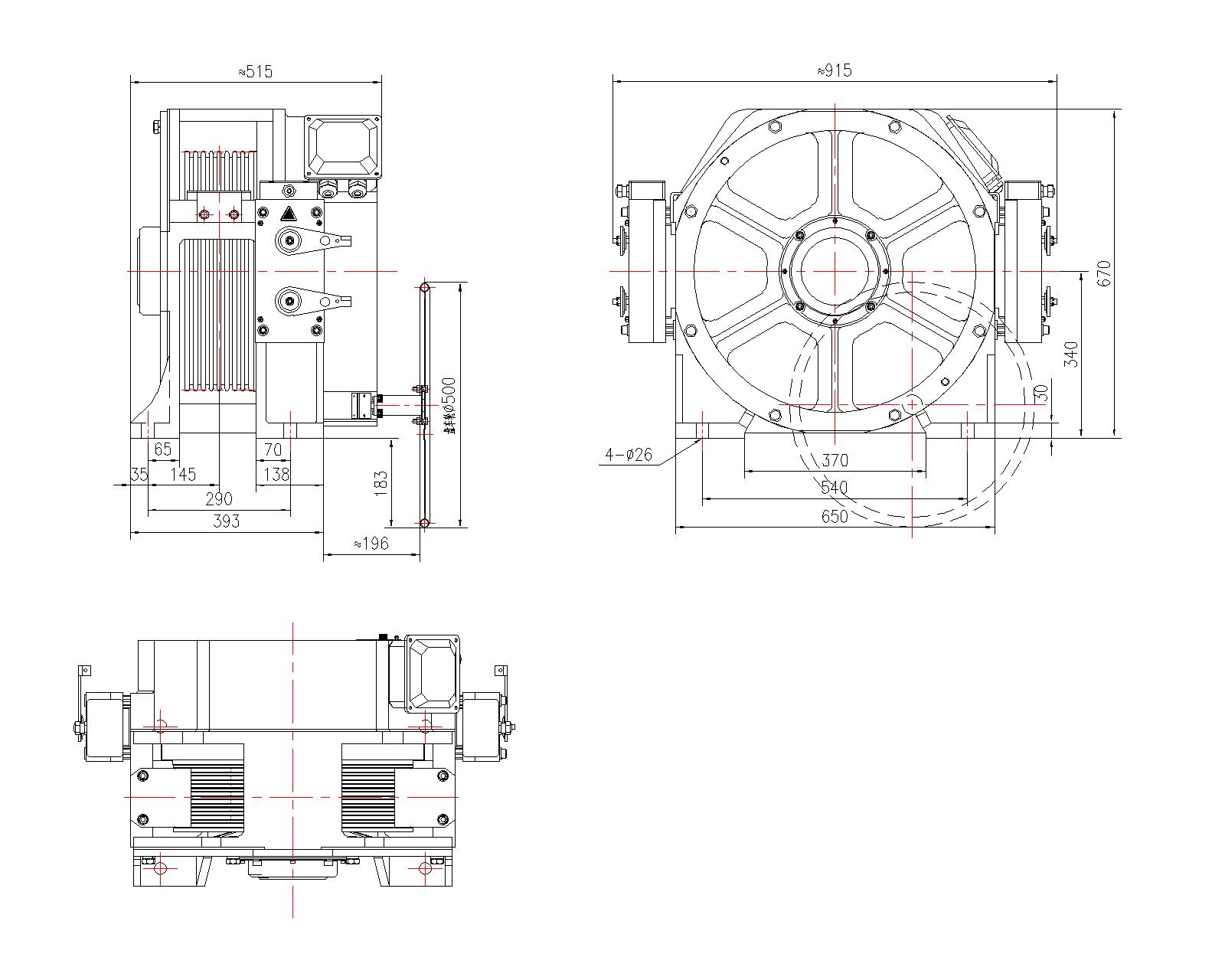

320-600KG Passenger Elevator Gearless Traction Machine For Lift

Product Description

NV41K-SWTY Series
Capacity(KGS)	320-1600
Speed(m/s)	1-2.5
Power (KW)	2.2-25.4
Roping	1:1

Nova Code	Capacity(KGS)	Speed(m/s)	Power(KW)	Traction Sheave(mm)	Travel Height
NV14K-SWTY1	320	1	2.2	φ400*4*φ8*12	＜=80M
						1.6	3.4
						1.75	3.8
		450	1	2.9		φ400*5*φ10*16
				1.6			4.6
				1.75			5
		630	1	4		φ400*6*φ10*16
				1.6			6.4
				1.75			7.2
		800	1	5.1		φ400*8*φ10*16
				1.6			8.1
				1.75			8.9
				2			10.1
				2.5			12.7
NV14K-SWTY2	1000	1	6.7	φ520*6*φ13*20
						1.6	10.8
						1.75	11.8
						2	13.4
						2.5	16.8
		1150	1	7.3		φ520*7*φ13*20
				1.6			11.7
				1.75			12.8
				2			14.6
				2.5			18.2
		1250	1	7.9		φ520*7*φ13*20
				1.6			12.7
				1.75			13.9
				2			15.5
				2.5			19.8
		1350	1	8.4		φ520*8*φ13*20
				1.6			13.7
				1.75			15
				2			17.1
				2.5			21.4
		1600	1	10.1		φ520*9*φ13*20
				1.6			16.2
				1.75			17.8
				2			20.3
				2.5			25.4

Elevator AccessoriesRelated ProductsShaft ComponentsElevator CabinDoor SystemTraction SystemSafety ComponentsElectric Components·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.Company ProfileExhibitionProduct PackagingFAQ1. Price Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators. 2. Payment term Re: T/T or L/C at sight. 3. Installation&Maintaining Re: We will send installation&maintaining manual along with the elevator. Our sugguestion is to hire a professional local company for installation and future maintaining, once you need any technical assistant from us, just don't hesitate to contact us by mail or phone. Technician will be sent to the job site if necessary. 4. Shipping&price term Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

Contact us if you need more details on Elevator Gearless Traction Machine. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Lift Traction Machine、Elevator Traction Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Elevator Parts > Traction System
