6*9S+PP Elevators Steel Wire Rope For Lift Parts Price

Product Description

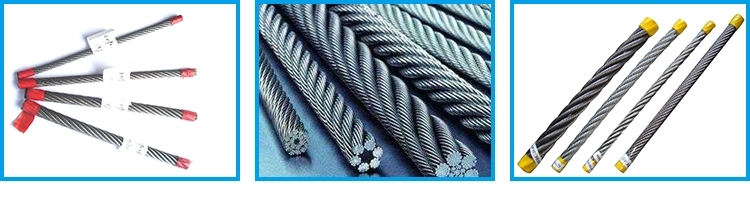

Product Name	Elevator steel wire rope
Material	ss304, ss316, galvanized steel ect.
Diameter Range	6-22mm
Types of Cables	Stainless steel wire rope, galvanized wire rope, coated wire rope, special wire rope
Surface	Bright, coated, galvanized, ect.
Features	Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral / longitudinal cracks, pits and marks etc

Similar Products Product Paramenters Rope For Over Speed Governor (6*19+PP)1. This rope is for low speed, low duty elevators 2. If elevator with high speed, please contact us 3. We can also produce as customer's requirements 4. Above specifications just for your reference. Error may occur in actual situation.

Nominal Rope Diameter	6*19S+PP	Minimum Breaking Load
		Dual Tensile,Mpa			Single Tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

Rope For Traction Machine (8*19+FC)
Natural fiber core(NFC): Suspension ropes for medium duty elevators Elevator speed≤20M/Ss, Building height≤60M

Nominal Rope Diameter	Approx Weight	Minimum Breaking Load
				Dual Tensile,Mpa			Single Tensile,Mpa
				1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

Rope For Traction Machine (8*19+IWRF, 8*19+IWRC)
For IWRC, speed>4.0 m/s, Building height> 100m For TWRF,20< speed≤40m/ s, Building heigh≤100m

Nominal Rope Diameter	Approx Weight			Minimum Breaking Load
						Dual Tensile,Mpa
						1370/1770			1570/1770	1620/1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m			kN			kN
8	26	25.9	35.8	35.2	38	37.4
9	33	32.8	45.3	44.5	48.2	47.3
10	40.7	40.5	55.9	55	59.5	58.5
11	49.2	49	67.6	66.5	79.1	70.7
12	58.6	58.3	80.5	79.1	85.6	84.2
13	68.8	68.4	94.5	92.9	100	98.8
14	79.8	79.4	110	108	117	115
15	91.6	91.1	126	124	134	132
16	104	104	143	141	152	150
18	132	131	181	178	193	189
19	147	146	202	198	215	211
20	163	162	224	220	238	234
22	197	196	271	266	283	283
